Fender CS 60s pickups compeard

Neumann

New member
Joined
Jan 18, 2022
Messages
3
Hi, I have some questions about Fender CS 60s PU

I want a warm tone without shrill high end, I won't get distortion too much when I turn up the volume, which PU should I go?

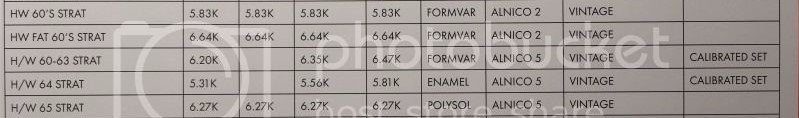

I see the PU spec chart HW 60 、HW 64 both has lowest output, HW60 used alnico 2 、HW 64 alnico 5

does anyone share about experience? thanks!



somebodyelseuk

Active member
Joined
Jun 10, 2020
Messages
376
I'm on the lookout for 1960 Strat pickups, myself.
I wouldn't consider any of those, but the nearest to what I'm after is the HW60 - if they were A5, I'd think about it.
I'm looking for 'made the way they used to' and they didn't make calibrated sets. They made ONE pickup, pulled three from a bucket and soldered them where they landed.
Something most people overlook/don't know about is that from 59 to 67 Fender put an aluminium shield plate (not a thin foil) on the back of the scratchplate, which has a similar effect to a cover on a humbucker.

Sorry, I didn't answer how you wanted.


Neumann

New member
Joined
Jan 18, 2022
Messages
3
I'm on the lookout for 1960 Strat pickups, myself.
I wouldn't consider any of those, but the nearest to what I'm after is the HW60 - if they were A5, I'd think about it.
I'm looking for 'made the way they used to' and they didn't make calibrated sets. They made ONE pickup, pulled three from a bucket and soldered them where they landed.
Something most people overlook/don't know about is that from 59 to 67 Fender put an aluminium shield plate (not a thin foil) on the back of the scratchplate, which has a similar effect to a cover on a humbucker.

Sorry, I didn't answer how you wanted.
I have heard original 60s strat, it's has very low output and has roll off on high end, I think that's magnetic decay
I think if I go with new CS PU with alnico 5, the sounds will very different.
maybe choose alnico 2 and low outpu PU more close vintage sound?
just my little opinion


Neumann

New member
Joined
Jan 18, 2022
Messages
3
For example like the video, I'm not sure what PU used on CS 64, maybe HW 64?
but original 64s sounds like that I have heard


somebodyelseuk

Active member
Joined
Jun 10, 2020
Messages
376
I have heard original 60s strat, it's has very low output and has roll off on high end, I think that's magnetic decay
I think if I go with new CS PU with alnico 5, the sounds will very different.
maybe choose alnico 2 and low outpu PU more close vintage sound?
just my little opinion
I agree. That aluminium shield plate has a lot to do with the high roll off, but I agree about the A5 magnets. I've always thought of an A2 as being a useful aged A5 substitute, but unless they're abused, AlNiCo magnets don't actually decay significantly - about 2% per hundred years, apparently.
As I said, of the options you list, my choice would be the HW60.
I think, but don't hold me to it, that the CS64 has Fat 60s in it. I would advise trying the guitar in person, though, if you can, simply because youtube clips aren't necessarily representative of what it sounds like 'in the flesh'.


somebodyelseuk

Active member
Joined
Jun 10, 2020
Messages
376
Hi, I have some questions about Fender CS 60s PU

I want a warm tone without shrill high end, I won't get distortion too much when I turn up the volume, which PU should I go?

I see the PU spec chart HW 60 、HW 64 both has lowest output, HW60 used alnico 2 、HW 64 alnico 5

does anyone share about experience? thanks!

View attachment 16840
Hiya.
Thought I'd update you on how my search for the 'definitive' set of 60s pickups went.
I contacted a winder here in the UK called Radioshop, based in South Wales. They do a set called the 'Case Study '63 set', which are based on a '63 Strat they were given access to measure every detail possible, without unwinding the pickups.
I bought a set, but requested that they fit mine with equal length leads. They arrived a couple of weeks later, I pulled them 'blindfold' from the box and "soldered them where they landed". They're A5, 42AWG Formvar etc with readings of (bridge to neck on MY set) of 5.9/5.9/6.1k.
I fitted them, along with Bare Knuckles 280k pots, a 0.1 uF cap, the aluminium shield plate and a steel block trem.
I was so blown away with them that I had them make me a set to a spec similar to a '54 (a variation of their Vintage '57s).
I'm extremely happy with both sets.


akstrat61

Well-known member
Joined
Feb 16, 2004
Messages
1,833
Most of you have heard of Wizz pups for your LP’s. I had him wire me a set of Strat pups that are absolutely fantastic. Not sure he is doing this anymore, but might be worth a try? I have a set of Wizz pups 8n my Skinnerburst as well.
